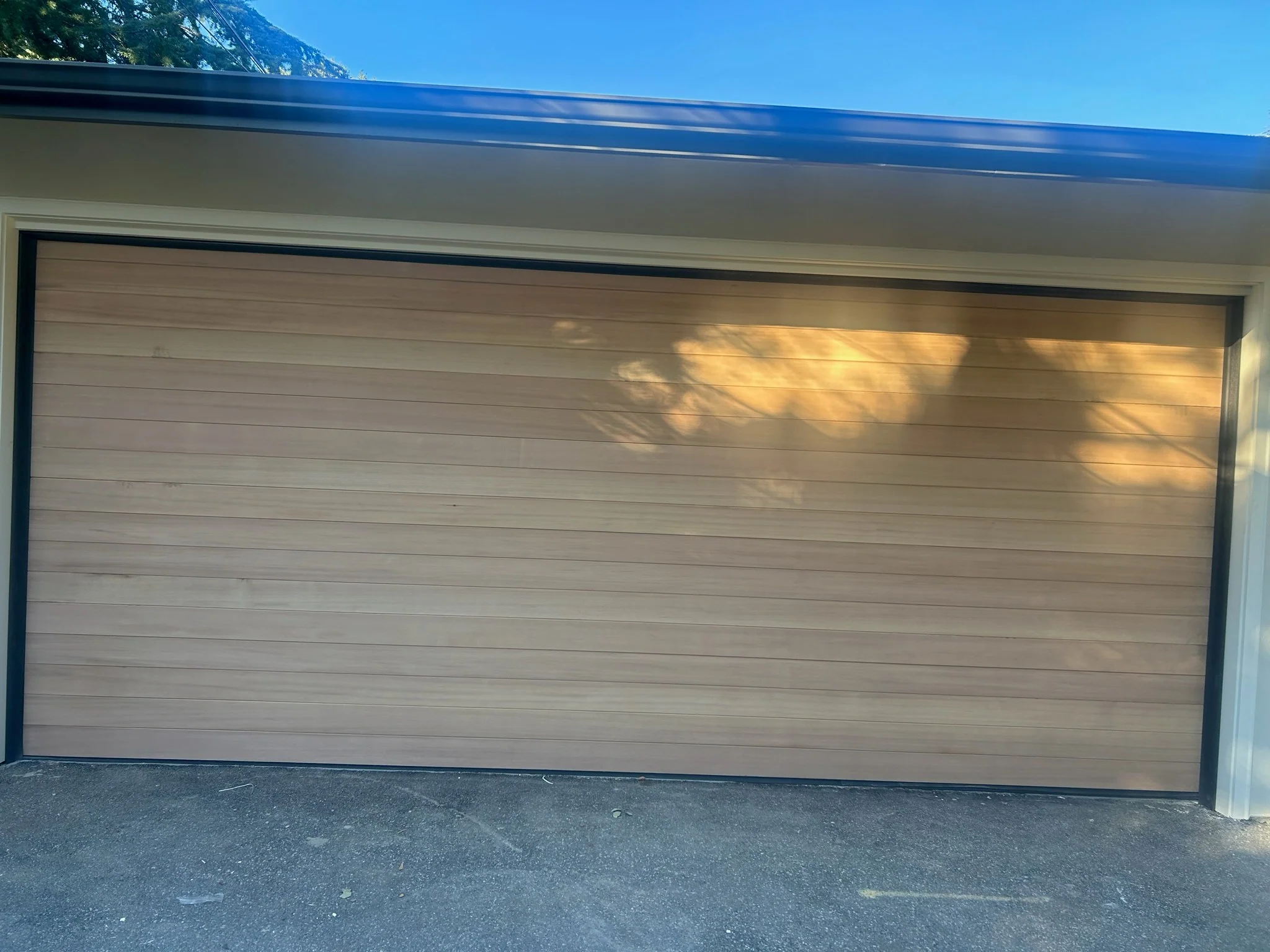

Emilio - Modern Style Custom Wood Garage Door

- Custom Sizes Available
- Garage Doors are delivered complete including tracks, springs & hardware
- Shipping to any residential or commercial address nationwide

Emilio Modern Style Wood Garage Door
Sizes (W x H)	Paint Grade (Available Primed at additional Cost)	Western Red Cedar (Solid Wood)	Mahogany (Engineered Wood)
8' x 7'	$3,490	$5,597	$4,090
9' x 7'	$3,729	$6,090	$4,450
10' x 7'	$4,099	$6,750	$5,284
12' x 7'	$5,892	$9,335	$7,097
16' x 7'	$6,685	$10,900	$8,127
18' x 7'	$7,612	$12,338	$9,290
8' x 8'	$3,636	$5,744	$4,254
9' x 8'	$3,883	$6,279	$4,594
10' x 8'	$4,275	$6,950	$5,449
12' x 8'	$6,159	$9,597	$7,375
16' x 8'	$6,950	$11,319	$8,390
18' x 8'	$7,890	$12,674	$9,620

Emilio with Slim Clear/Frosted Glass Windows Top-to-Bottom Left or Right Side Modern Style Wood Garage Door
Sizes (W x H)	Paint Grade (Available Primed at additional Cost)	Western Red Cedar (Solid Wood)	Mahogany (Engineered Wood)
8' x 7'	$3,839	$6,157	$4,499
9' x 7'	$4,090	$6,699	$4,895
10' x 7'	$4,490	$7,425	$5,812
12' x 7'	$6,480	$10,269	$7,790
16' x 7'	$7,354	$11,990	$8,940
18' x 7'	$8,370	$13,572	$10,190
8' x 8'	$3,990	$6,318	$4,679
9' x 8'	$4,270	$6,890	$4,990
10' x 8'	$4,690	$7,645	$5,990
12' x 8'	$6,775	$10,557	$8,090
16' x 8'	$7,645	$12,450	$9,190
18' x 8'	$8,679	$13,940	$10,580

Our unique designs, quality and industry leading prices set Lux Garage Doors apart from our competitors. Our Modern Wood Doors Collection incorporates handcrafted wood enhancing its classic appearance. This collection combines the modern look of sectional doors with a classical appearance of swinging carriage house style wood doors. Lux's wood garage doors offer prominent features including, vertical grain lumber, all sections are reinforced with a heavy duty struts Support in the back of each of section giving the section extra strength and durability to last for many years.

Wood Types	Description
Paint Grade	5/8" MDO Plywood Base & Overlay
Western Red Cedar	Solid Cedar Wood Base & Overlay
Mahogany	Marine Mahogany Engineered Wood Base & Solid Red Grandis Wood Overlay (Trim)

Specifications:

1. Handcrafted construction 4-5 Layers (2-3/4" Thick)
2. Optional decorative hardware
3. Wood Species: Paint Grade, Western Red Cedar or Mahogany
4. Wood Type: Paint-grade or Stain-grade
5. Wood Color: Unfinished
6. Glass Type: Single Pane Clear (1/8" Thick)
7. Custom Capabilities: Size, Glass
8. Warranty: All Lux Custom Wood Garage Door Series including their hardware are warranted for 1-year.
9. Energy-efficient insulation which is applied using Polystyrene Insulation in the back of the wood panel
10. Packaging: Loose

Track and Hardware Details:

1. Spring Type: Torsion, Oil Spring
2. Track Size: 2" Flag & Jamb Bracket Jambs
3. Track Mount: Bracket
4. Track Lift: Standard (High Lift or Low-Lift available)
5. Track Radius: 12" or 15"
6. Packaging: Loose
7. Rollers: Heavy-duty steel ball bearing rollers with nylon tires provide quiet operation
8. No lock hole

Construction Detail Picture:
